Enna’s Value Stream Mapping Quick Guide covers the basics of VSM Iconography, with in-depth yet easy to understand definitions of the symbols used in creating a Value Stream Map. Along with these explanations comes a step-by-step workflow for creating a useful Current State Value Stream Map.

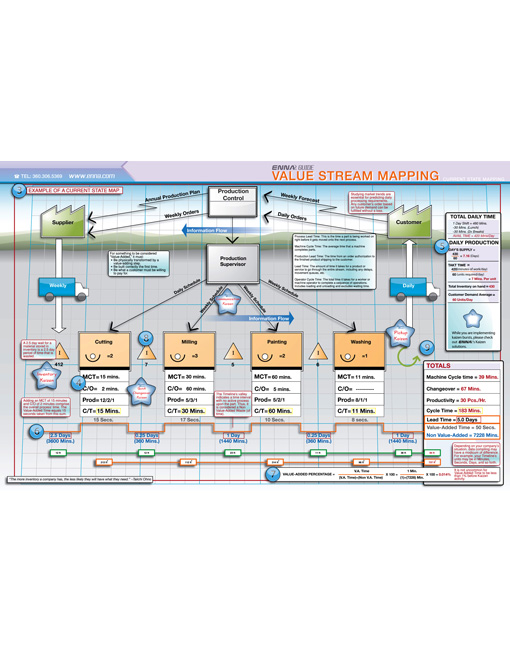

Along with definitions of each step and instructiosn for calculating the necessary values, when you flip the quick guide over you will be presented with a clear, visual outline for creating your own map. Quickly reference the numbers from one side to the other to both see and understand how each part of the Value Stream Map is created.
Why use Quick Reference Guides?
Other great ways to use them:
